Overview
DeAmp’s Architectural metal ceilings are completely fibre free and ensure a better indoor environment and easy maintenance. Since there is no use of porous layers, there is no risk of dust or moisture problems over the lifespan of the product or in a fire emergency.
The perforation covers less than 1% of the panel surface and consequently over 99% of the material is left as a light reflecting area.
DeAmp metal absorbers can also reduce energy consumptions due to their desirable thermal properties.
Customization
We offer flexibility in terms of suspension systems and fitting for ventilation and lightning systems.
The tuning of the DeAMP Metal ceiling panels can be tuned at specific frequencies that fit your needs.
Panel sizes and shapes can be changed for every project.
Recyclability
DeAmp aluminum panels are made from recycled metal and our ceiling panels are 100% recyclable.

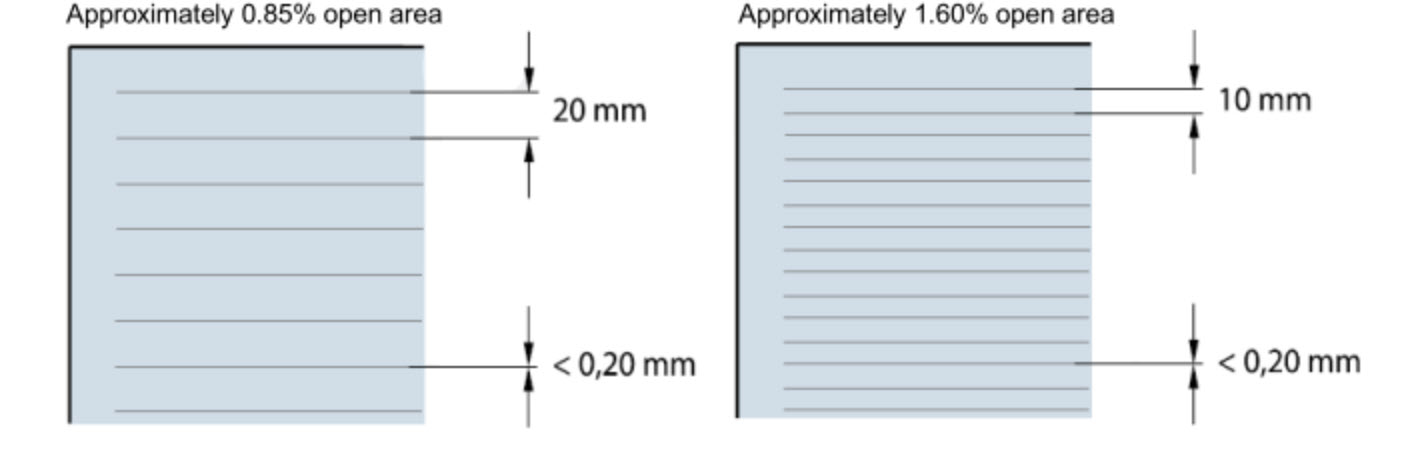

Perforations
Mounting
There are different mounting options:

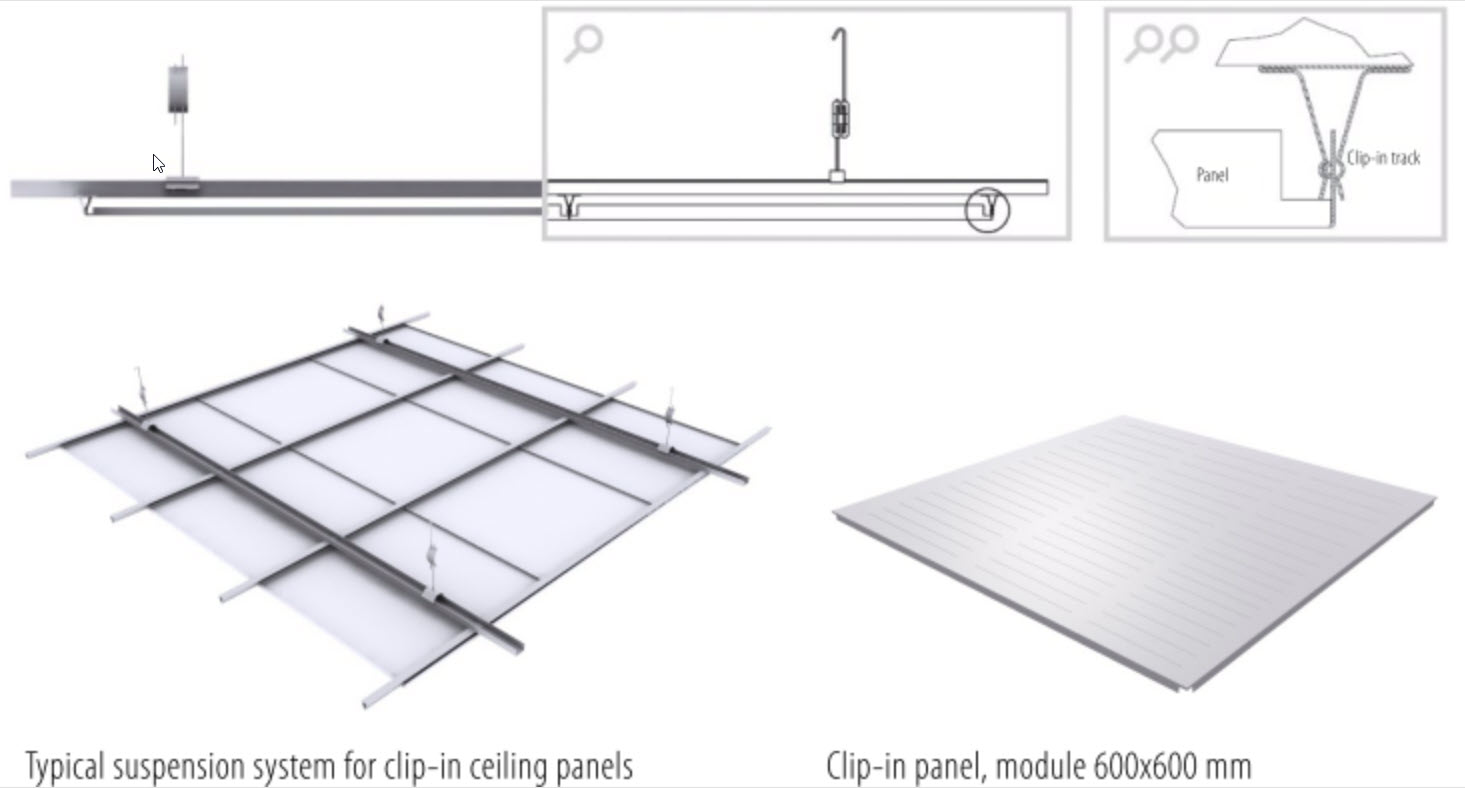

Clip-in Solution

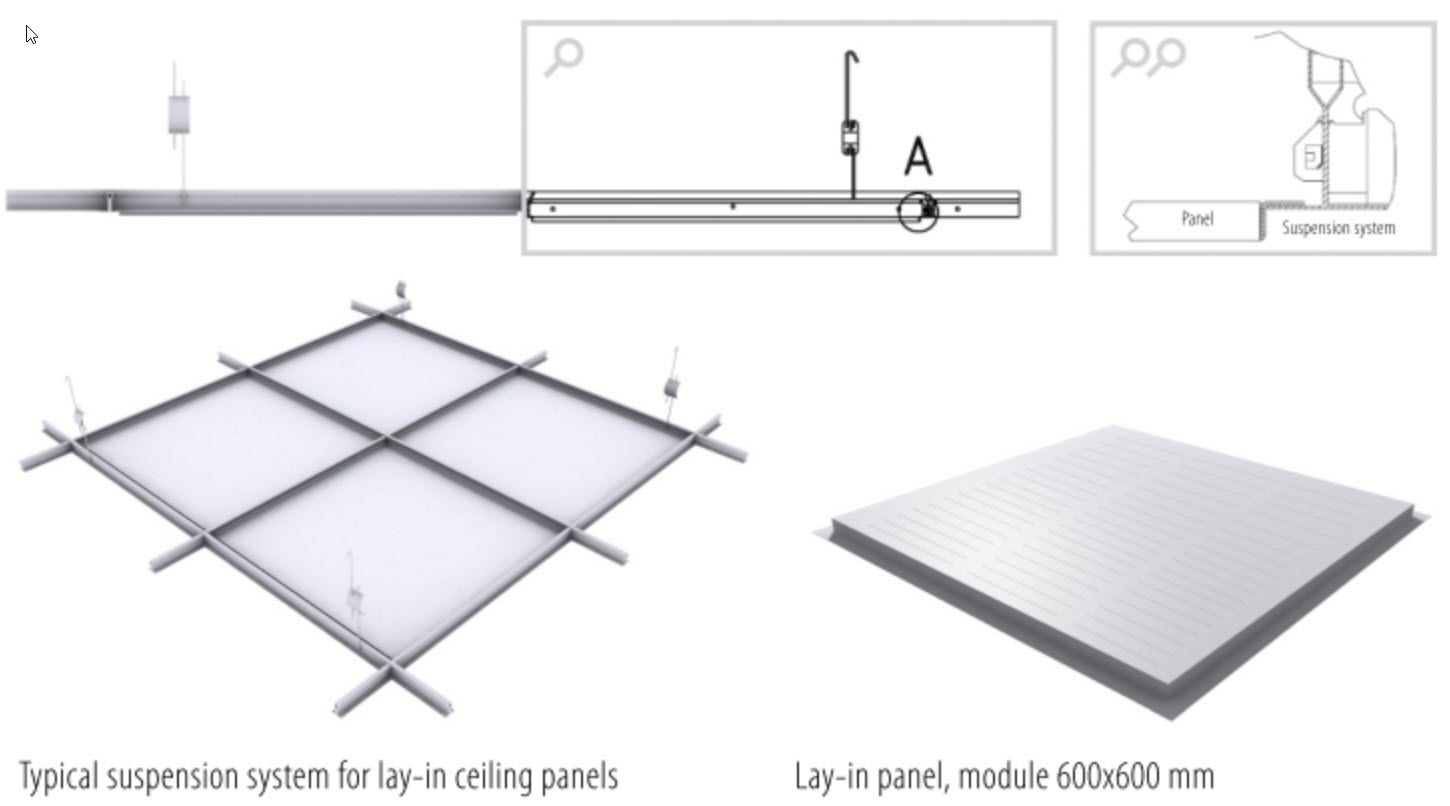

In-lay Solution
Sound Absorption

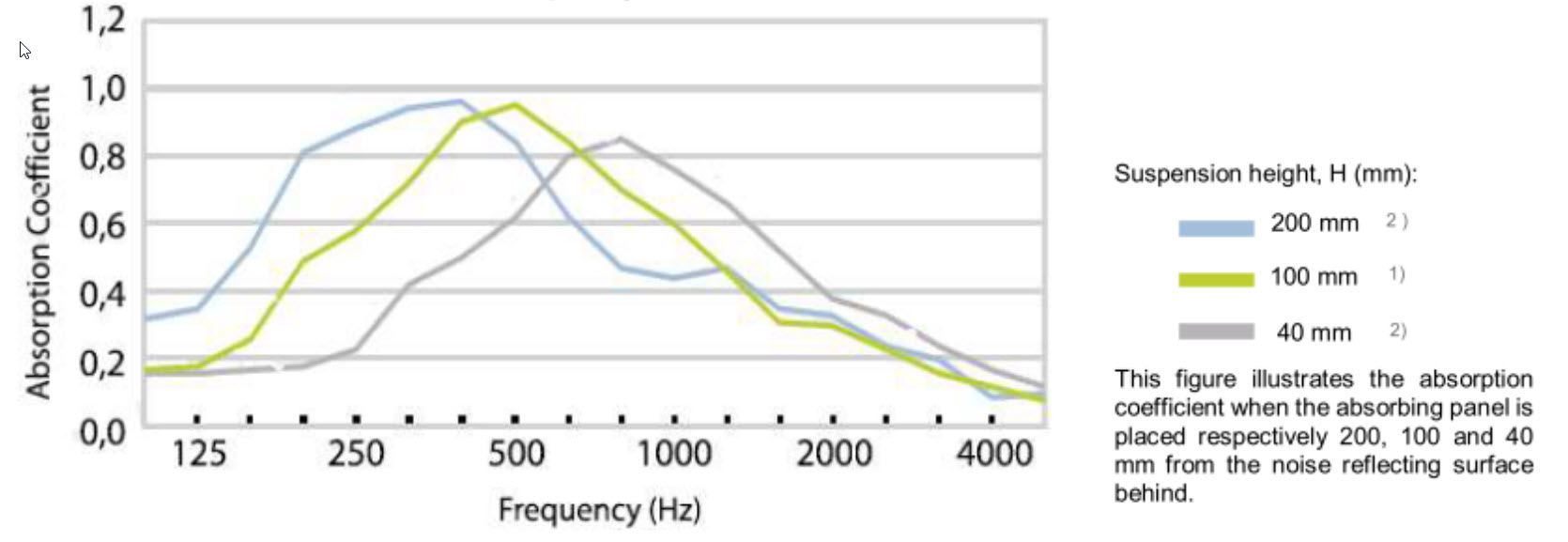

The absorption coefficient is adjustable to the desired frequency area. The following absorption curves are adjustable by simulations in our proprietary acoustic software specially developed for this technology.

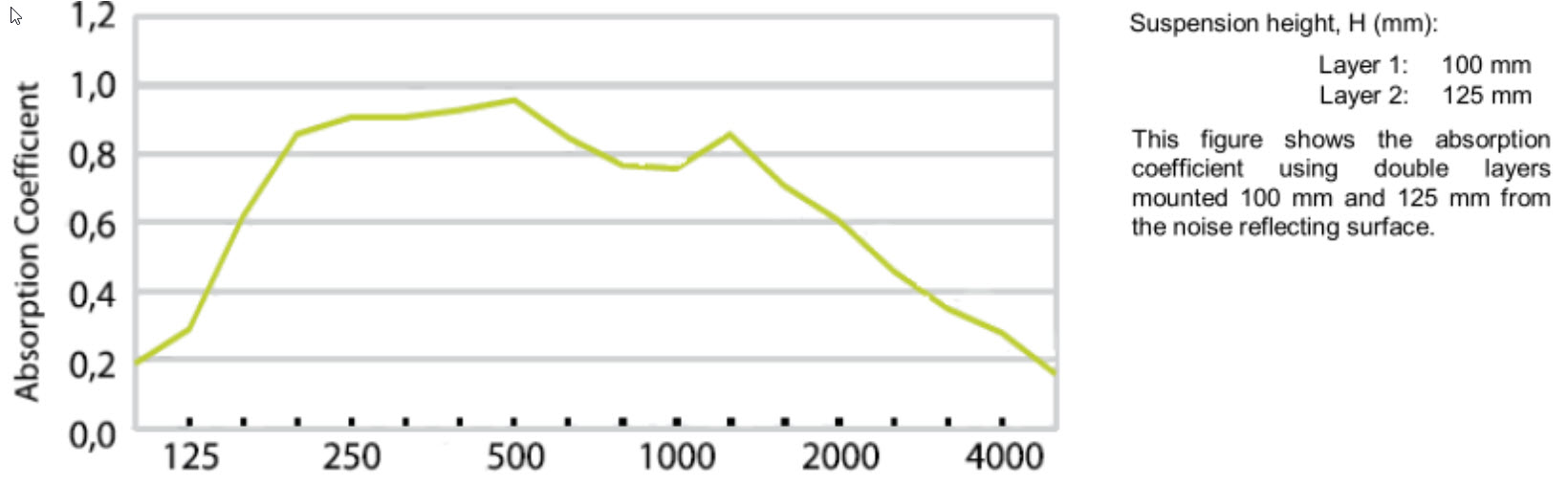

Double layering the panels results in a broadband absorption. Below are measurements of the panel absorption using double layers mounted 100 mm and 125 mm from the noise reflecting surface.

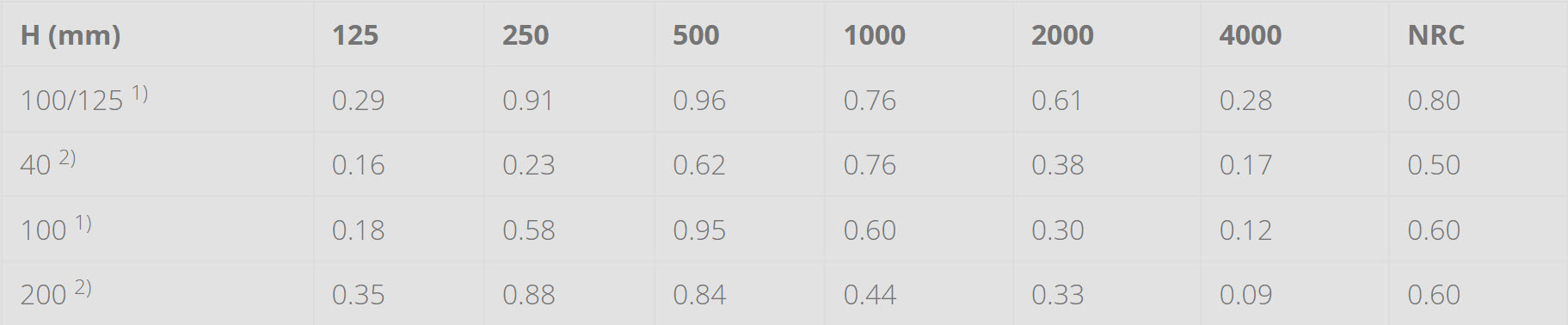

@-coefficient Table
The absorption coefficient when the absorbing panel is placed respectively 200, 100 and 40 mm from the noise reflecting surface behind. A multitude of “panel tunings” can create different absorption curves desirable for troublesome bass frequencies on for example cruise ships or concert halls.
Product Specifications
Material:
aluminium or steel
Sizing:
Standard (mm): 600x600 and 1200x600
customization available
Thickness:
0.7 mm to 1mm
Color:
standard RAL 9010
all NCS- and RAL coded colors available
Technical Data:
Sound absorption:
NRC 0.50 to 0.80
Flammability:
UK, BS 476 Part 7 - Class 1
